One incorrect flooring choice can compromise your entire cleanroom operation. When a pharmaceutical manufacturer in New Jersey discovered their "ESD flooring" was actually allowing static charges to build unchecked, they faced a $2.3 million product recall and three months of downtime. The problem? They didn't understand the critical difference between ESD-safe and conductive flooring systems.
Most facility managers use these terms interchangeably. They shouldn't.
The distinction between electrostatic discharge (ESD) flooring and conductive flooring isn't semantic: it's fundamental to protecting your processes, products, and personnel. Choose wrong, and you're either over-engineering your space at unnecessary cost or leaving critical operations vulnerable to static-related failures.
Understanding the Electrical Resistance Spectrum
Here's what separates these flooring types: electrical resistance.
According to ANSI/ESD S20.20 standards, flooring systems fall into three categories based on their resistance to electrical current:
- Conductive flooring: < 1.0 x 10⁶ ohms (less than one million ohms)
- Static dissipative (ESD) flooring: 1.0 x 10⁶ to 1.0 x 10⁹ ohms (one million to one billion ohms)
- Insulative flooring: > 1.0 x 10⁹ ohms (greater than one billion ohms)

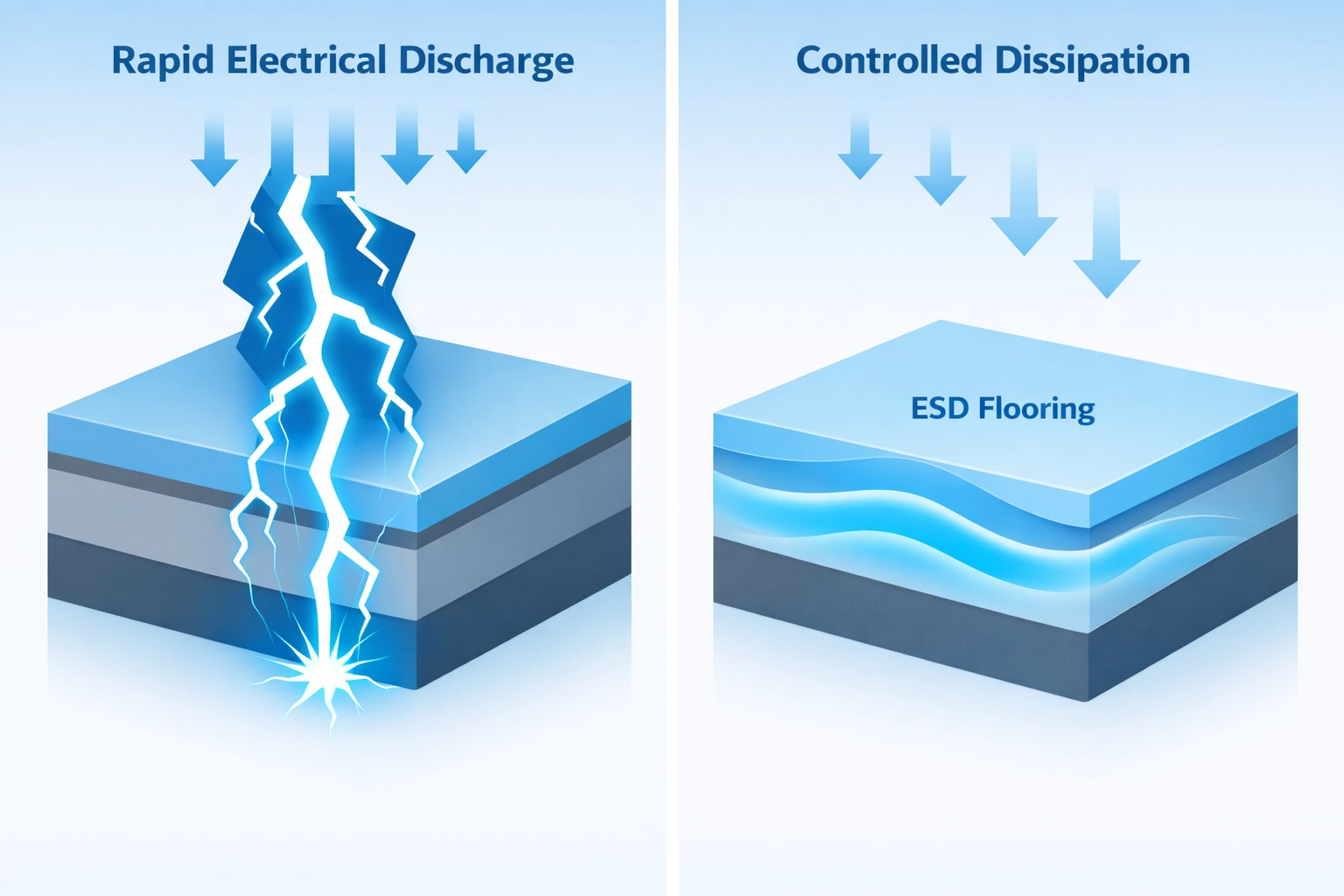

Conductive flooring moves electrical charges rapidly to ground. ESD flooring controls the discharge rate, allowing charges to dissipate gradually rather than creating dangerous sparks. Both prevent static buildup: but they do it differently, and those differences matter.
When Your Cleanroom Needs Conductive Flooring
Conductive flooring is your choice when rapid charge dissipation is non-negotiable.
Electronics manufacturing facilities handling unpackaged integrated circuits need conductive systems. So do operations working with volatile solvents, explosive powders, or flammable gases. In these environments, even a momentary static charge can trigger catastrophic consequences.
A semiconductor fabrication facility in Texas learned this the hard way. Their Class 100 cleanroom used standard ESD flooring: adequate for most applications but insufficient for their specific wafer processing. A single static event during a critical lithography step destroyed an entire production run worth $840,000.
Conductive flooring provides immediate grounding paths. When an operator walks across the floor, any static charge generated dissipates in milliseconds rather than seconds. This rapid response is critical in:
- Semiconductor wafer fabrication areas
- Explosive materials handling zones
- Pyrotechnics manufacturing
- Munitions assembly facilities
- Chemical processing with volatile compounds
- Operating rooms using flammable anesthetics
The trade-off? Conductive flooring requires more stringent grounding infrastructure and typically costs 15-25% more than static dissipative alternatives. You're also creating a more sensitive electrical path: which means proper installation becomes even more critical.
Why Most Cleanrooms Choose ESD Flooring
For the majority of controlled environments, ESD flooring delivers the optimal balance of protection and practicality.
Static dissipative flooring controls discharge rates while preventing the rapid electron flow that can damage sensitive electronic components. A charge that would destroy a microprocessor on conductive flooring dissipates harmlessly on properly specified ESD surfaces.
This controlled dissipation makes ESD flooring ideal for:
- Pharmaceutical packaging and filling operations
- Medical device assembly
- Biotechnology laboratories
- Data centers and server rooms
- Aerospace component manufacturing
- Precision optics fabrication
- Most ISO Class 5-8 cleanrooms
The pharmaceutical industry particularly benefits from ESD flooring's balanced approach. During tablet coating operations, static charges can cause powder adhesion to equipment surfaces: creating contamination risks and product inconsistencies. ESD flooring prevents charge buildup without the aggressive grounding requirements of conductive systems.
An injectable drug manufacturer in North Carolina eliminated 73% of their contamination events simply by upgrading from standard vinyl to certified ESD flooring. Their ISO Class 7 filling suite now maintains consistent particle counts regardless of operator movement or equipment operation.
The Material Matters As Much As The Classification
Here's what catches facilities off guard: you can't determine ESD properties by looking at flooring material alone.
Epoxy, polyurethane, vinyl, and rubber can all be formulated as either ESD or conductive systems. The difference lies in the conductive additives, carbon content, and engineered pathways built into the material structure.
We've tested "ESD epoxy" that measured at 10¹¹ ohms: completely insulative. We've also evaluated vinyl products marketed as "anti-static" that fell within true conductive ranges. Marketing claims mean nothing. Independent testing against ANSI/ESD S7.1 standards means everything.
Quality ESD and conductive flooring systems incorporate:
- Carbon or metal particles distributed throughout the material thickness
- Conductive veins or grids that create consistent electrical pathways
- Copper grounding strips connected to facility ground systems
- Homogeneous composition so resistance remains stable as the floor wears
- Factory testing documentation proving compliance with relevant standards
The installation process affects performance as dramatically as material selection. We've documented cases where certified ESD flooring failed post-installation testing because installers used non-conductive adhesives or created gaps in the grounding grid.
Testing: The Only Way To Know What You Actually Have
Assume nothing. Verify everything.
Your facility's electrical resistance should be tested with a calibrated megohmmeter following ANSI/ESD S7.1 protocols. This means point-to-point resistance measurements across multiple locations and resistance-to-ground readings at regular intervals.
Testing should occur:
- Before final acceptance of new installations
- Quarterly in critical ESD-sensitive areas
- Annually in general cleanroom zones
- After any floor repairs or modifications
- When contamination or static-related failures increase
A contract manufacturer discovered their five-year-old ESD flooring had degraded to insulative levels in high-traffic pathways. The culprit? Aggressive cleaning chemicals that broke down the conductive pathways. Regular testing would have caught the problem before it affected production.
The Hidden Variable: Relative Humidity
Here's the factor that surprises even experienced cleanroom managers: humidity dramatically affects ESD performance.
At 70% relative humidity, even standard flooring materials dissipate static reasonably well. At 20% relative humidity: common in winter months and low-dew-point cleanrooms: those same materials become highly insulative.
True ESD and conductive flooring systems maintain consistent performance across humidity ranges because their electrical properties don't depend on surface moisture. This stability is critical in:
- Climate-controlled cleanrooms with low humidity requirements
- Facilities in arid climates
- Winter operations in northern regions
- Any space where HVAC systems aggressively remove moisture
We documented a biotech facility in Colorado that experienced mysterious static events only during winter. Their flooring tested perfectly during summer installation but became problematic when indoor humidity dropped below 25%. The solution wasn't better flooring: it was understanding that their standard vinyl couldn't perform in low-humidity conditions.
Making The Right Choice For Your Operation
Start with your contamination control requirements, then work backward to flooring specifications.
Ask these questions:
- What products or processes are static-sensitive in your operation?
- What are the consequences of a static discharge event: product damage, safety hazard, or contamination?
- What humidity levels does your cleanroom maintain year-round?
- What are your regulatory requirements (FDA, ISO, IEC, ANSI)?
- What traffic patterns and chemical exposures will the floor endure?
For most pharmaceutical, biotech, and medical device cleanrooms, certified ESD flooring provides appropriate protection. For semiconductor, electronics assembly, and explosive materials handling, conductive systems offer necessary rapid dissipation.
The wrong choice creates either unnecessary cost or inadequate protection. Both are failures.
Why DIY Specification Fails
Flooring manufacturers provide resistance ranges, but they don't engineer complete grounding systems. Your HVAC contractor understands humidity control, but probably can't interpret ANSI/ESD S20.20 requirements. Your general contractor may install floors beautifully but lack ESD testing equipment.
Proper ESD or conductive flooring requires integrated system design.
At Cleanroom Floors, Inc., we engineer flooring as part of your complete contamination control strategy. That means:
- Analyzing your specific static sensitivity requirements
- Designing grounding infrastructure integrated with building systems
- Specifying materials that match your chemical exposure and traffic patterns
- Testing installations against relevant ANSI and IEC standards
- Providing ongoing verification protocols
We work with pharmaceutical, biotech, semiconductor, and medical device manufacturers who can't afford to guess about static control. Our anti-static flooring solutions are engineered systems, not catalog products.
The Bottom Line
ESD and conductive flooring aren't interchangeable terms: they're distinct solutions for different static control challenges. Conductive systems offer rapid dissipation for explosive or highly sensitive applications. ESD flooring provides controlled discharge for the majority of cleanroom operations.
The question isn't which is "better." The question is which protects your specific operation.
Don't wait for a static-related failure to discover you specified incorrectly. Contact us today for a complimentary facility assessment. We'll test your current flooring, analyze your contamination risks, and provide specific recommendations based on your processes: not generic marketing materials.
Your cleanroom floor is the foundation of your contamination control strategy. Make sure it's engineered correctly from the ground up.
